9.2.0. Fetal Measurements

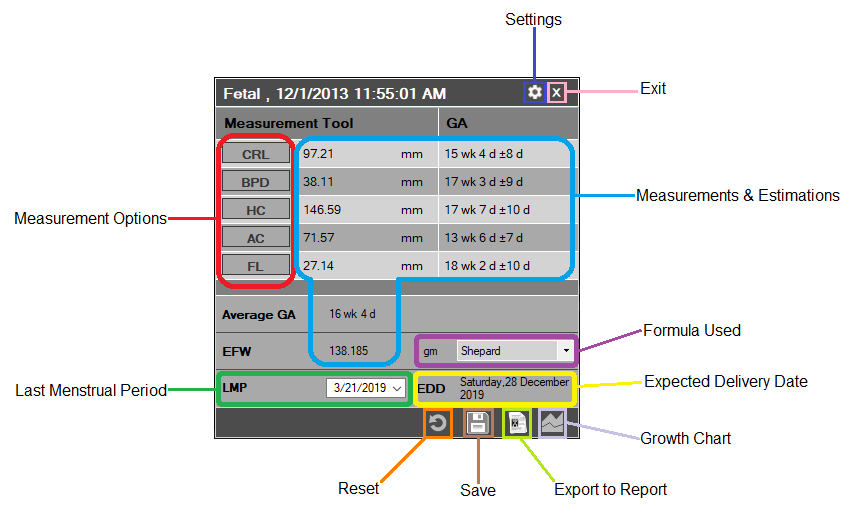

This tool enables the user to take fetal measurements on ultrasound studies including: crown rump length (CRL); bipartial diameter (BPD); head circumference (HC); abdomen circumference (AC); and femur length (FL).
The age of the fetus can also be estimated using different equations, and the user can view the growth chart of the fetus.

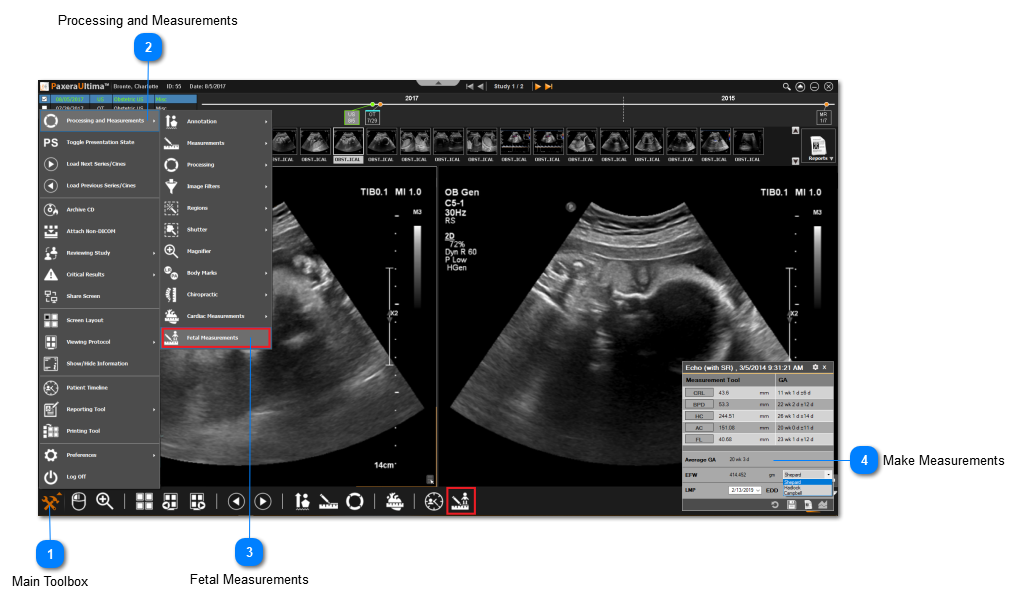

9.2.0. Fetal Measurements

This option will only be available if an ultrasound study (US) is open

1

Main Toolbox

Click on the main toolbox located on the bottom left corner.
2

Processing and Measurements

Click on Processing and Measurements.
3

Fetal Measurements

Select Fetal Measurements from the menu.
4

Make Measurements

Start making measurements and estimations using the fetal measurements tool.

The contents of 9.2.0. Fetal Measurements

9.2.1. Measurements
9.2.2. Save Measurements & Calculations
9.2.3. Set Overlay Location
