9.5.12. Condyle Circles Template
The condyle circles template is used to perform condyle circle measurements on occiptal condyles. Follow the instructions below to use this tool:
1. Select the ‘Condyles circle’ from the advanced section of the chiropractic toolbox
2. Click on the image and the template will appear on the image.
3. To move the template: click on the template and drag it to the desired location.
4. To resize the template: click on the any of the white points located on the outer corners and move it to adjust the dimensions.
5. To rotate the template: click on the green point and a wheel will appear for you to click and rotate the template.

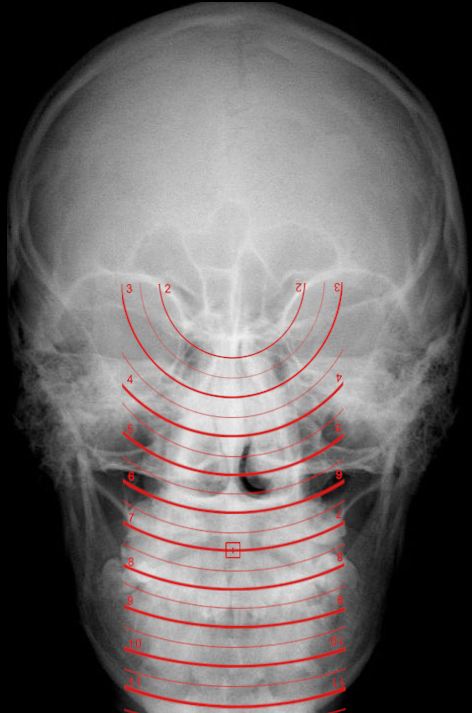

An example of this template is shown below:
