8.18.0. Study Viewer

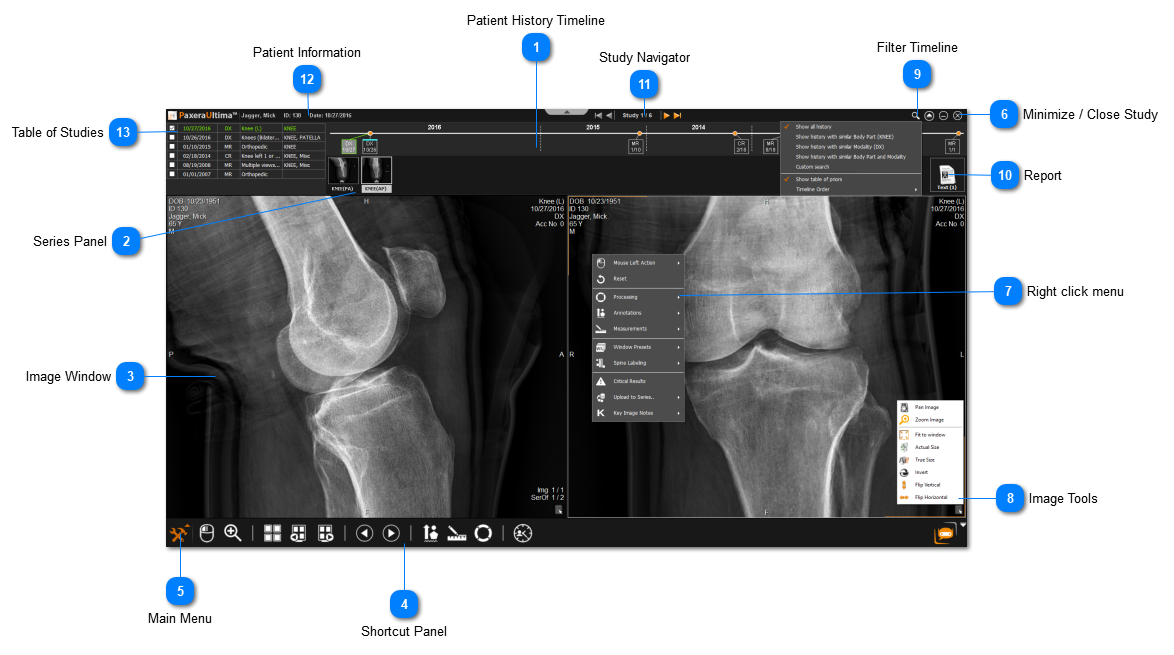

The study viewer is opened when you open a study. Below is an overview:

8.18.0. Study Viewer

1
Patient History Timeline
The patient history timeline shows a full previous of all the patients current and prior studies
1. Patient History Timeline
  • Each block represents a study and shows the modality type and date
  • The green block indicates that the study is open
  • To add a study to view (i.e. for current/prior comparison) simply drag in a second block from the patient timeline into the image window - the study will be added & the view will be split to see both the current & prior
  • To view only one study - simply double click on the block of interest from the patient timeline

2
Series Panel
The series panel shows all of the series in the study
2. Series Panel
  • Drag in a series from the series panel into the image window to view it
  • MRI, CT, US and some other studies may contain multiple images in one series

3
Image Window
The number of image windows shown on each monitor is completely customizable
3. Image Window
The image window is used to view an image

4
Shortcut Panel
The shortcut panel is fully customizable and contains all the tools that the user needs easy access to.
4. Shortcut Panel

5
Main Menu
In the bottom left corner of the screen is a Orange toolbox button - this gives the user access to the main menu which shows all the tools avaiable in Ultima.
5. Main Menu

6
Minimize / Close Study
Used to minimize the viewer or close the study.
6. Minimize / Close Study

7
Right click menu
Additional options are avaiable when the user right clicks on the image, as shown below:
7. Right click menu

8
Image Tools
8. Image Tools
In the bottom right corner of every image window is a small button that gives the user access to an set of Image Tools, as shown below:

9
Filter Timeline
The user can filter the timeline to have it show studies according to similar anatomy, modality, or both. Use the drop down menu to filter the timeline and you can also change the order from ascending/descending.
9. Filter Timeline

10
Report
Enables the user to acess the report from the study viewer.
10. Report

11
Study Navigator
The study navigator enables users to switch between studies that are loaded in the WorkList.
11. Study Navigator

12
Patient Information
Basic Patient & Study information given:
12. Patient Information

13

Table of Studies

13. Table of Studies
The table shows all studies for the patient. You can check off another study from the table to make a current/prior comparison.
