11.2.3. Amplifier Gain
The amplifier gain tool enables the user to adjust the amplification of the ECG waveform in order to emphasis waveform peaks. Follow the instructions below to learn how to use this:
1. Right click anywhere on the waveform window

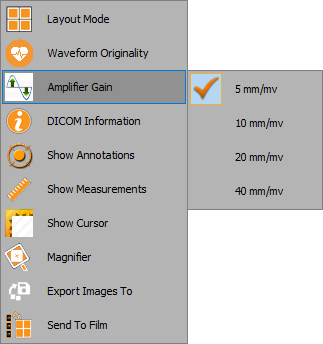

2. From the dropdown list, select ‘Amplifier gain’ and the amplification of interest:

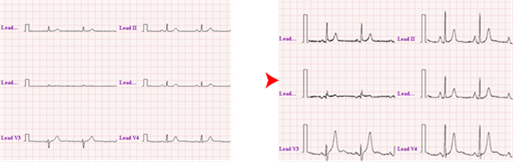

In the example below, the amplification was changed from 5mm/mv to 20 mm/mv:
